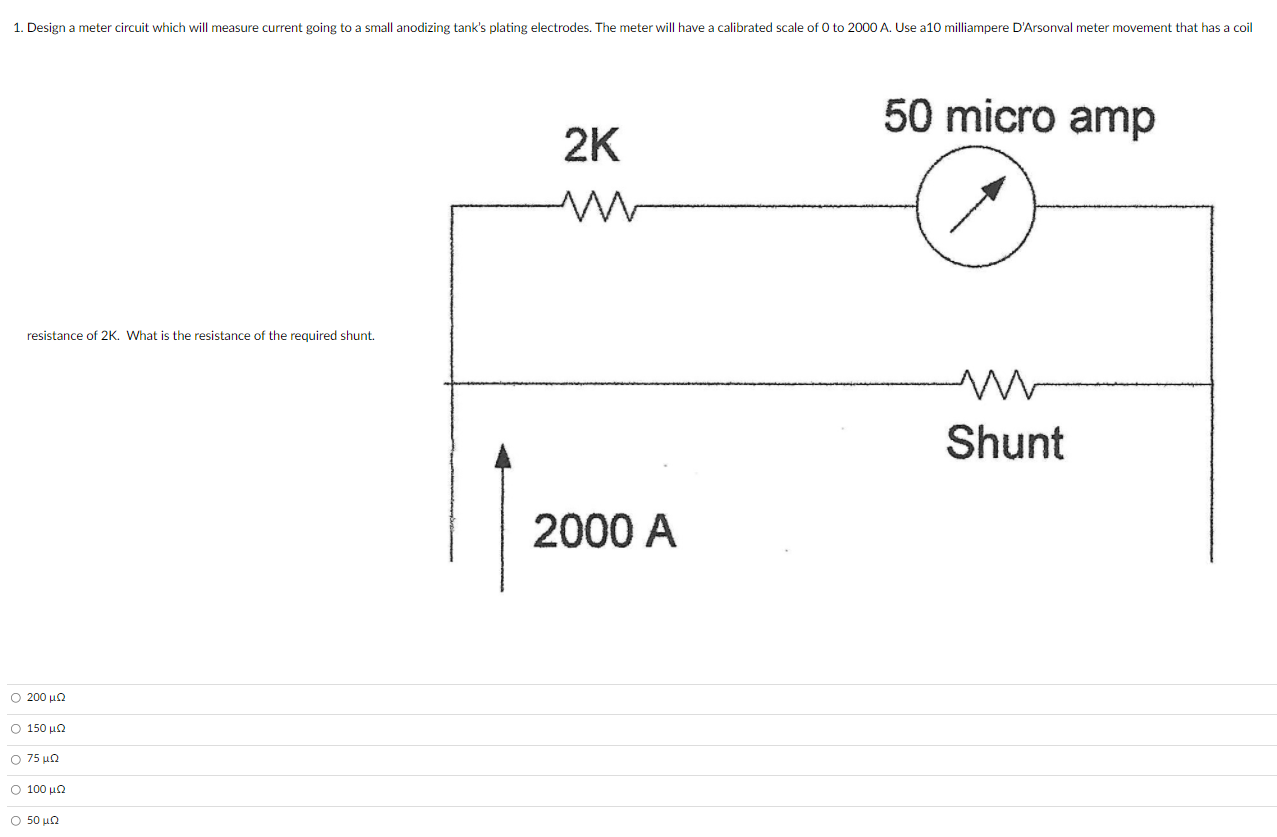

Solved 1 Design a meter circuit which will measure current Circuit Diagram Design low resistance shunt resistor using a simple wire Display the dc current value on an LCD. it can be used as a digital Ammeter circuit for current measurement in electronics experiments. measure its resistance with the help of ohm meter. You can easily design .47 ohm resistor with the help of simple wire. It is a hit and trial method. The multimeter is an indispensable tool for any electronics project, as it helps overcome countless challenges during project completion. This article will demonstrate how to create a cost-effective digital multimeter using an Arduino board and an OLED display. This multimeter is capable of measuring voltage, current, resistance, and capacitance.
The Micro Ampere Meter Circuit is a valuable tool for accurately measuring small electric currents typically in the microampere range. By using a combination of resistors, operational amplifiers and a current measuring device this circuit provides a reliable method for monitoring and analyzing low level currents in various electronic applications. Step 3: After determining the full-scale current rating of your meter movement, you must accurately measure its internal resistance. To do this, disconnect all components from the previous testing circuit and connect your digital ohmmeter across the meter movement terminals. Record this resistance figure and the full-scale current figure
Make a Digital Multimeter with Arduino Circuit Diagram
For current measurement, they are connected in series with the circuit. Multimeters are ideal for general-purpose troubleshooting and diagnostics in various electronic and electrical projects. Clamp meters: Clamp meters measure current without needing to make physical contact with the conductor or interrupt the circuit. They work by clamping
Ammeter Design. A meter designed to measure electrical current is popularly called an "ammeter" because the unit of measurement is "amps." In ammeter designs, external resistors added to extend the usable range of the movement are connected in parallel with the movement rather than in series as is the case for voltmeters. This is In this step-by-step guide, we'll show you how to build a reliable and accurate meter panel that measures both voltage and current for AC circuits.By followi The secondary ac current is rectified and smoothed by D1 and C. The R1 and R2 shunt resistors yield a correct full scale for the meter. You may need to combine a few standard value resistors to
